How to Test a Brake Booster: 6 Methods for Conventional Vacuum Systems
Six screening checks for a conventional vacuum brake booster, from a no-tool pedal check to a vacuum-supply gauge reading — plus what each result does and doesn't prove.
A hard brake pedal does not automatically mean the booster has failed. The same symptom can come from the vacuum source, a cracked hose, a check valve, a grommet, or insufficient vacuum from the intake manifold or vacuum pump. The checks below narrow down which part of the system needs attention before anything gets replaced.
Scope note: Tests 1–6 in this guide apply only to conventional vacuum-assisted brake systems. Hydroboost, electric brake booster, and integrated electro-hydraulic systems require vehicle-specific procedures. Identify the installed system by VIN and service information — the vehicle nameplate alone is not sufficient, because brake-assist design can vary by model year, engine, and configuration.
If you haven't confirmed the symptom pattern yet, start with our complete list of bad brake booster symptoms, then come back here for the hands-on checks.
Before You Start
- Park on level ground. Put an automatic transmission in Park; put a manual transmission in Neutral before any engine-running check. Set the parking brake and chock the wheels.
- Perform engine-running checks outdoors. Do not run the engine in an attached garage, carport, or any enclosed or partly enclosed space, even with the door open.
- Keep hands, hair, clothing, and tools clear of belts, fans, pulleys, and hot components. Cooling fans can start without warning.
- Listen from the cabin side first. Do not place your head or hands near moving engine parts.
- Keep children and pets away from the vehicle while the engine is running.

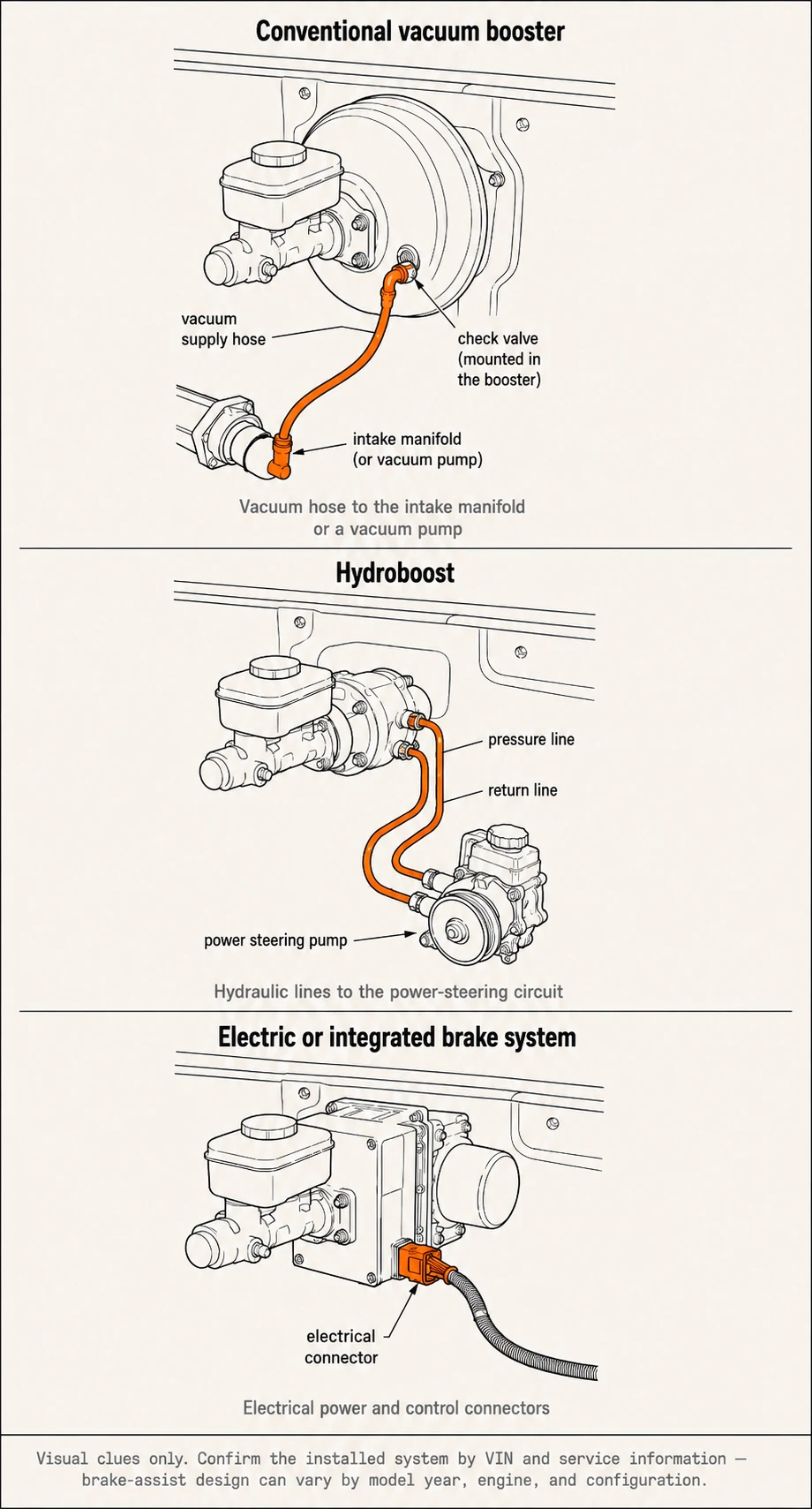

Identify Your Assist System First
| System type | General visual clues | How to confirm |
|---|---|---|
| Conventional vacuum booster | A vacuum supply hose connects the booster to the intake manifold or a vacuum pump | Verify by VIN, under-hood routing diagram, or service information |
| Hydroboost | Hydraulic lines connect the unit into the power-steering circuit | Verify the exact system and procedure by VIN |
| Electric or integrated brake system | Electrical power and control connectors; layout varies substantially | Use the vehicle's service information and brake-system identification |
Do Not Test If Assist Is Already Gone
Do not continue driving with a suspected loss of brake assist. If the pedal is hard and the vehicle does not slow normally, move it only as far as necessary to reach a safe stopping position, then arrange professional inspection or towing. See our safety guidance on driving with a failing booster.
Tools
Start with the three no-tool screening checks. Visual inspection and gauge testing take additional time and may require vehicle-specific adapters. Tool prices vary by seller and date, so this guide does not assign a universal purchase cost.
| Check | Tools required | Scope |
|---|---|---|
| Pedal drop | None | Initial screening |
| Vacuum reserve | None | Initial screening |
| Hissing check | None | Initial screening |
| Hose and valve inspection | Flashlight | Visual inspection |
| Vacuum supply test | Vacuum gauge and correct sealed adapter | Conventional vacuum systems only |
| Check-valve test | Hand vacuum pump recommended | Conventional vacuum systems only |
Test 1: The Pedal Drop Check
Tools: None
- With the engine off, pump the brake pedal several times until it becomes firm. This depletes stored assist.
- Hold the pedal with moderate, steady pressure.
- Start the engine, keeping your foot on the pedal.
- Watch what the pedal does.
Expected result: The pedal should move downward when the engine starts, showing that brake assist is being produced at that moment. Cardone's PT54-0006 bulletin uses approximately 1 inch as a generic benchmark. Use the vehicle-specific service procedure where it provides a different criterion.
If the pedal does not move: Brake assist is not being produced. Check the vacuum source, hose, check valve, and connections before identifying the booster itself as the failed component.
Test 2: The Vacuum Reserve Check
Tools: None
- Run the engine briefly to build vacuum, then switch it off.
- Wait the interval specified by the vehicle manufacturer, or begin with an immediate reserve check.
- Press the pedal several times. A healthy system should normally provide one or more assisted applications before the pedal becomes firm.
- If the first application is immediately hard, inspect the vacuum source, hose, check valve, connections, and booster for leakage.
An assisted pedal moves with noticeably less effort. Do not describe it as "soft" or "spongy" — those terms indicate a hydraulic-pedal condition rather than normal brake assist.
Test 3: The Hissing Check
Tools: None, in a quiet location
Start the engine, have a helper hold the brake pedal with moderate pressure, and listen from the cabin side near the pedal pushrod and firewall.
A persistent hiss that changes with pedal application can indicate a vacuum leak somewhere in the brake-assist circuit. With the engine off, inspect the vacuum source, hose, connections, check valve, grommet, and booster. Do not identify an internal booster failure from sound alone — the leak can be anywhere in the circuit.
Test 4: Hose and Check-Valve Inspection
Tools: Flashlight
- Locate the booster on the firewall, behind the master cylinder.
- Trace the vacuum hose from its source to the booster.
- Inspect the full length for cracks or splits, soft, swollen, or brittle sections, collapsed hose, loose or missing clamps, and broken elbows or tee fittings.
- Inspect the check valve for physical damage and loose fitment. Location varies by design — some valves are mounted in the booster shell through a rubber grommet, others sit inline in the vacuum hose. Check the grommet as well where the valve is booster-mounted.
- Check around the master cylinder where it bolts to the booster.
Follow the vehicle-specific diagram and component markings when checking valve orientation. Functionally, the vacuum source must be able to evacuate the booster, and the valve must prevent reverse airflow back into it. Confirm direction against the service information for that vehicle and the markings on that specific valve; do not apply a single cross-vehicle rule.
If brake fluid is found at the rear of the master cylinder or inside the booster interface, inspect both components and follow the vehicle manufacturer's service procedure. If the fluid level is dropping or a hydraulic leak is confirmed, stop testing and arrange professional inspection or towing — a continuing leak can eventually disable one hydraulic brake circuit. For more on this failure mode, see our master cylinder fluid contamination section.
If you find a hose or connection defect, repair it and repeat Tests 1 and 2 before going further. A supply problem can reproduce many of the same symptoms as a failed booster.
Test 5: Vacuum Supply Test
Conventional vacuum-assisted systems only
Tools: Vacuum gauge and the correct sealed adapter
- With the engine off, apply the brake pedal repeatedly until stored assist is depleted.
- Disconnect the vacuum supply hose at the booster and connect a vacuum gauge to the source hose with the correct sealed adapter.
- Start the engine and allow it to idle while observing the gauge.
- Compare the reading with the specification for the exact vehicle. Cardone's PT54-0006 bulletin lists 18–21 inHg as a general vacuum-supply target for a conventional vacuum booster. The vehicle manufacturer's specification controls for the exact application.
- Switch the engine off before removing the gauge and reconnecting the hose.
- Before restarting or moving the vehicle, confirm the vacuum hose, check valve, grommet, and clamps are fully seated, then repeat the pedal drop check.
This procedure tests vacuum supply only. Because the booster is disconnected during the test, pressing the brake pedal cannot be used to measure booster leakage or vacuum consumption. To test vacuum retention or decay, use the vehicle-specific tee, gauge, or hand-pump procedure with the manufacturer's specified test pressure and decay limit.
If supply is below the vehicle's specification, Cardone's bulletin calls for further engine diagnosis on manifold-vacuum systems. On vehicles supplied by a mechanical or electric vacuum pump, the next step is the pump, its control and power supply, and the vacuum circuit instead. Either way, a low reading points at the supply side — it does not by itself clear the booster.
Test 6: Check-Valve Test
A hand vacuum pump is recommended
- Switch the engine off and apply the brake pedal repeatedly to discharge stored assist.
- Remove the check valve only as directed by the vehicle-specific service procedure. Brittle valves and grommets can break during removal.
- Use a hand vacuum pump to verify one-way operation in the direction specified by the vehicle manufacturer. The vacuum source must be able to evacuate the booster, and the valve must prevent reverse airflow back into it.
- If the valve fails, replace it and repeat the pedal-drop and reserve checks.
- If the valve passes, continue inspecting the vacuum source, hose, connections, grommet, and booster.
Do not test the valve by mouth, and do not apply shop air unless the component manufacturer provides a pressure limit and test procedure.

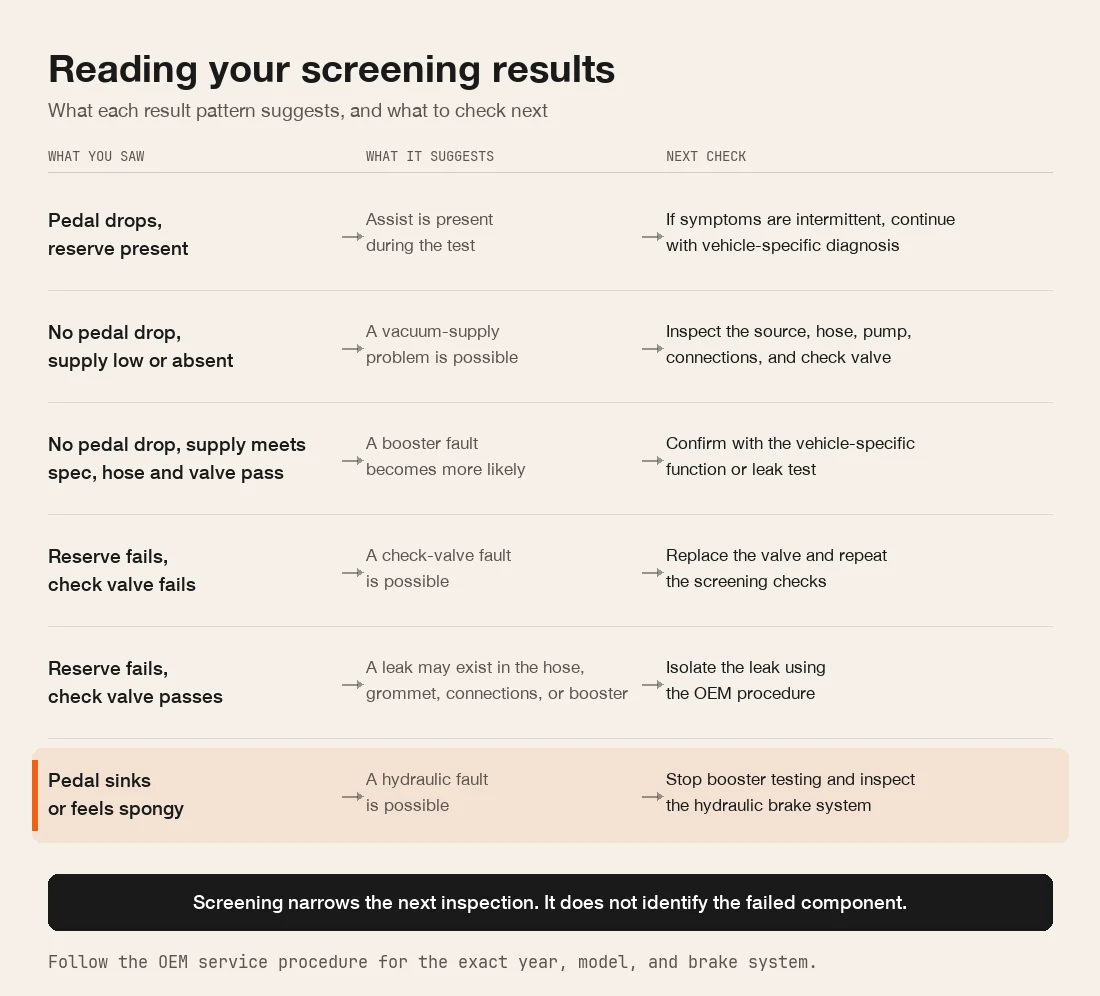

Screening Results and Next Checks
These checks narrow the next inspection. They do not identify the failed component by themselves.
| Result pattern | What it suggests | Next check |
|---|---|---|
| Pedal drops and reserve is present | Brake assist is present during the test | If symptoms are intermittent, continue with vehicle-specific diagnosis |
| No pedal drop and source vacuum is low or absent | A vacuum-supply problem is possible | Inspect the source, hose, pump, connections, and check valve |
| No pedal drop, source vacuum meets the OE specification, and hose/valve checks pass | A booster fault becomes more likely | Confirm with the vehicle-specific function or leak test |
| Reserve check fails and the check valve fails its specified test | A check-valve fault is possible | Replace the valve and repeat the screening checks |
| Reserve check fails but the check valve passes | A leak may exist in the hose, grommet, connections, or booster | Isolate the leak using the OEM procedure |
| Pedal sinks or feels spongy | A hydraulic fault is possible | Stop booster testing and inspect the hydraulic brake system |
Screening cannot rule out intermittent, temperature-dependent, or operating-condition-dependent faults, or two faults present at once. Do not order a booster on the strength of one screening result.
Hydroboost: Use the Vehicle-Specific Procedure
Vacuum tests do not apply to hydroboost systems. A basic function check can show whether assist is present:
- With the engine off, apply the brake pedal repeatedly to discharge stored reserve.
- Hold the pedal with moderate pressure.
- Start the engine.
- Pedal movement indicates that hydraulic assist is being produced at that moment.
This basic check does not isolate the power-steering pump, hoses, steering circuit, accumulator, or hydroboost unit. Do not perform a pressure test or a lock-to-lock accumulator test from a generic web procedure. Use the OEM procedure for the exact year, engine, and installed hydroboost unit, or have the system professionally diagnosed.
Electric and Integrated Brake Systems
Electric brake boosters and integrated electro-hydraulic brake systems require vehicle-specific diagnostics.
At home, record the exact dashboard warnings and check the 12-volt battery using the vehicle manufacturer's procedure. Do not diagnose motor wear from sound alone — some systems produce pump or motor noise in normal operation. Do not assume a generic OBD-II reader can access brake-system modules; coverage depends on the tool and the vehicle.
A loss of assist, a significant change in pedal feel, or a brake, ABS, or stability-control warning requires professional diagnosis with equipment that supports the vehicle's brake control system. Do not continue driving the vehicle.
Booster or Master Cylinder?
A hard pedal suggests a loss of brake assist, not necessarily a failed booster. Possible causes include the booster, vacuum hose, check valve, vacuum pump, hydroboost supply, or electric assist components.
A pedal that sinks under steady pressure or feels spongy points to a hydraulic problem such as internal master-cylinder bypass, external leakage, air in the system, flexible-hose expansion, or an ABS hydraulic fault.
Pedal feel narrows the system that needs inspection; it does not identify the failed component by itself.
More commonly associated with loss of assist:
- Rock-hard pedal, difficult to push
- Persistent hiss from the firewall area
More commonly associated with a hydraulic fault:
- Pedal sinks slowly under steady pressure
- Spongy or mushy pedal feel
- Brake fluid level dropping
For a fuller comparison, see our booster vs master cylinder guide.
When to Stop Testing
Do not continue driving with a suspected loss of brake assist. Move the vehicle only as far as necessary to reach a safe stopping position, then arrange professional inspection or towing.
Stop testing and obtain professional assistance if:
- Pedal effort has changed significantly
- Stopping performance has changed at any speed
- The pedal sinks or feels spongy
- The engine runs poorly when the brake is applied
- A brake, ABS, or stability-control warning appears
- The required procedure or test result is unclear
Do not perform stopping-distance tests on a road or in a parking lot.
Frequently Asked Questions
What is the simplest way to check a brake booster at home?
The pedal drop check. With the engine off, pump the pedal until it is firm, hold moderate pressure, and start the engine. Pedal movement shows that assist is being produced at that moment. No tools are required. It is a screening check, not a diagnosis.
How much vacuum should a brake booster have?
Cardone's PT54-0006 bulletin lists 18–21 inHg as a general vacuum-supply target for a conventional vacuum booster. The vehicle manufacturer's specification controls for the exact application. A reading below the vehicle's specification points at the supply side — on manifold-vacuum systems that means further engine diagnosis, and on pump-supplied systems it means checking the pump and its circuit. A low reading does not by itself clear the booster.
Can I drive with a failing brake booster?
No. Do not continue driving with a suspected loss of brake assist. Move the vehicle only as far as needed to reach a safe stopping position, then arrange inspection or towing.
Is it the brake booster or the master cylinder?
A hard pedal points at loss of assist — which can originate in the booster, hose, check valve, vacuum pump, or assist components. A pedal that sinks or feels spongy points at a hydraulic fault. Pedal feel narrows the system, not the part.
Should I replace the check valve before replacing the booster?
Test the check valve before replacing any component. Replace it if it fails the applicable one-way or vacuum-retention test, if it is physically damaged, or if the OEM procedure calls for replacement — then repeat the pedal and reserve checks.
Does a bad brake booster make a hissing noise?
A persistent hiss that changes with pedal application can indicate a vacuum leak in the brake-assist circuit. The leak can be at the source, hose, connections, check valve, grommet, or booster. Sound alone does not identify which.
Confirmed Booster Fault? Your Next Step
If vehicle-specific diagnosis confirms a failed brake booster, compare exact fitment, component condition, warranty terms, core-return requirements, included hardware, and supplier support. New OEM service parts, remanufactured units, and new aftermarket units can all be viable when correctly matched to the vehicle.
For vehicle owners: Search brake boosters by vehicle or OE number
For repair shops and distributors: Request wholesale pricing
Before ordering, review the current brake booster replacement cost guide and confirm the required installation and post-repair procedures for the exact vehicle.
VACTIRO is a manufacturer-backed brand supplying newly manufactured brake boosters, hydroboost units, and master cylinders. Selected stocked SKUs ship from Hazelwood, Missouri; availability and lead time are confirmed with each quote. Fitment is reviewed before quotation under the published warranty and return terms.
Sources
CARDONE ProTech PT54-0006 — vacuum brake booster diagnosis: 18–21 inHg vacuum supply requirement, vacuum-source gauge test at the booster supply line, and the engine-off / pedal-hold / engine-start function check with approximately 1 inch of pedal movement. Retrieved August 4, 2026. cardone.com PT54-0006 (PDF)
NHTSA Part 573 Safety Recall Report 23V-410 — consequence of losing brake assist: "A loss of brake assist can result in hard pedal feel and increased effort during pedal application thereby increasing stopping distances." Basis for the do-not-drive guidance in this guide. Retrieved August 4, 2026. NHTSA (PDF)
Honda Service Bulletin 10-069 / NHTSA 10V504 — master cylinder cup-seal leakage: "The brake fluid can then leak into the brake booster", and "A prolonged leak would eventually cause one of the two brake system hydraulic circuits to fail." Basis for the fluid-contamination inspection and the stop-testing condition. Retrieved August 4, 2026. NHTSA (PDF)
KnowYourParts — Hydro-Boost: The Non-Vacuum Booster — trade publication, secondary source. Used for the basic hydroboost function check only. That page states the basic check confirms whether the system is working but cannot evaluate performance, and directs the reader to the OEM procedure for specifics — which is why no pressure test, accumulator test, or generation-specific figures appear in this guide. Retrieved August 4, 2026. knowyourparts.com
Specifications and procedures vary by vehicle. Where this guide and the vehicle manufacturer's service information differ, follow the service information. Hydroboost service steps beyond the basic function check must come from the OEM procedure for the exact year, engine, and installed unit.
